24×16 Clear Span Pavilion Plan

Name: 24x16 Clear Span Pavilion Plan
Brand: Fountain Signature Design
SKU: 1051
Availability: InStock

$22.00

SKU: 1051 Category: Timber Frame Pavilions

Plenty of space with only four posts. This timber frame pavilion could be added to the back of a house too. At a 5 in 12 roof slope this is a classically proportioned structure that would work well as a pool house or porch addition.

This basic concept plan should be used for pricing, approval submittal, and/or gathering bids. There are no construction details in this plan.

Secure Checkout

We stand behind our plans and products!

Designed and Drafted by Professional Carpenters
Thorough and Clear Plans to Follow
No Hassle Refunds - 30 Day Money Back Guarantee on Plan Purchases

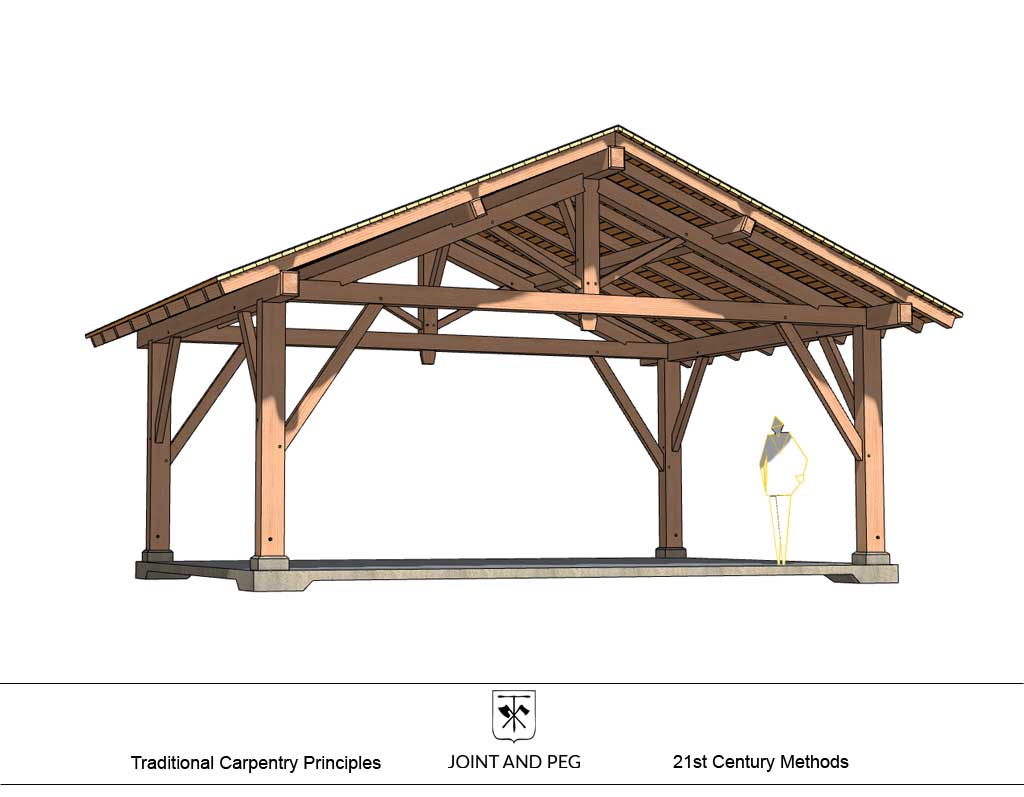

A classic open air heavy timber frame. This 24×16 Clear Span Pavilion can serve as a back of the house porch or a fantastic and large pool house. This basic concept plan should be used for pricing, approval submittal, and/or gathering bids.

There are no construction details in this plan.

With your purchase of this base concept plan, you may select the following free add-ons.

An estimate to have this plan detailed and stamped by a state licensed engineer.
An estimate to have this timber frame manufactured as a ready to assemble kit.

Brand	Joint and Peg, Fountain Signature Design
Plan Delivery Format	Instant Document Download
Included PDF Sheet Size	Letter Size – 8.5" x 11"
Included Qty of Sheets	14 Sheets

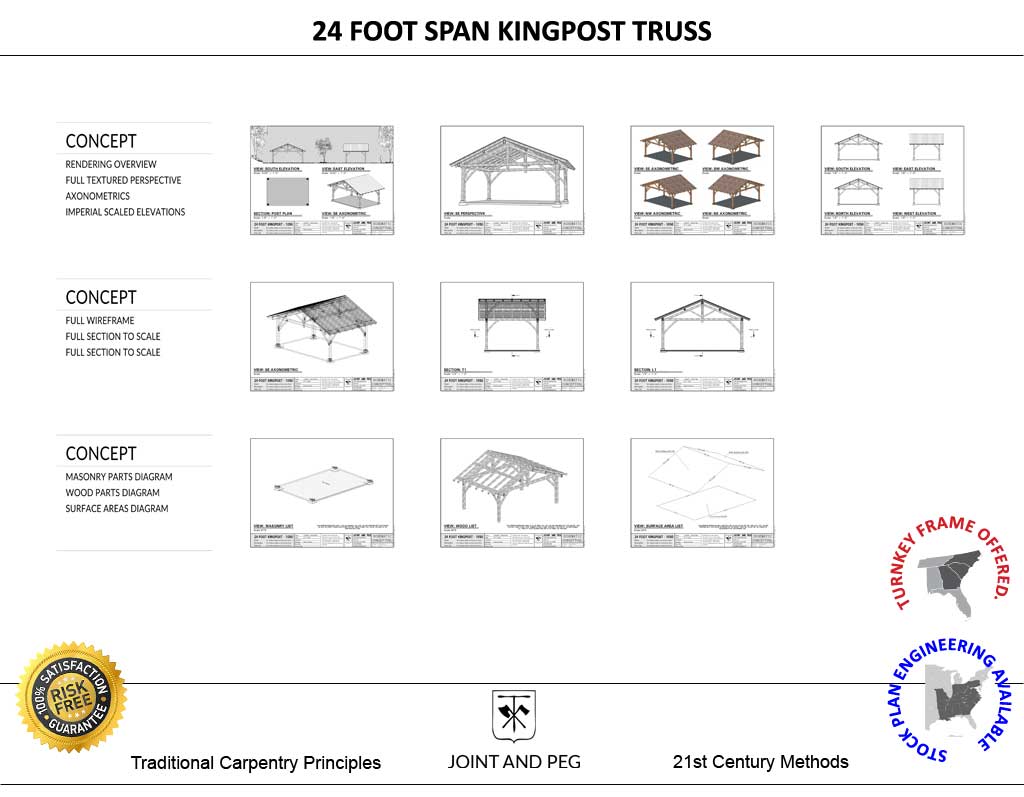

Included Architectural Views	Axonometric Views, Colored Renderings, Connection Call Outs, Scaled and Dimensioned Elevations, Scaled and Dimensioned Plan Views, Scaled and Dimensioned Section Views

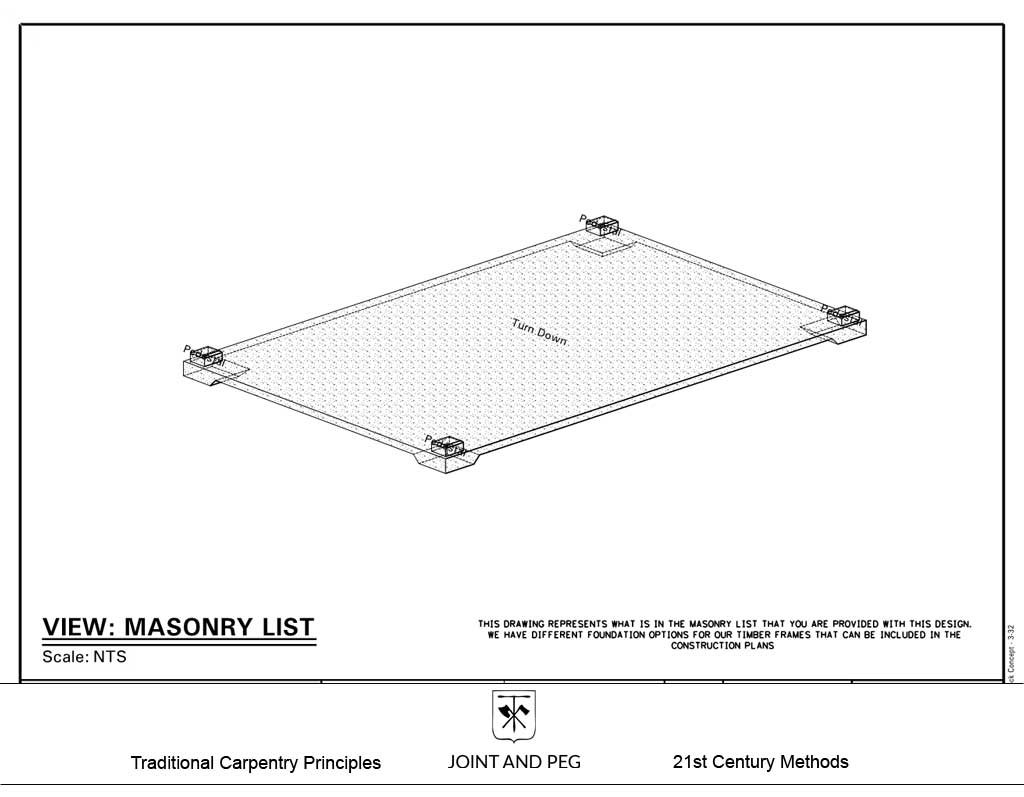

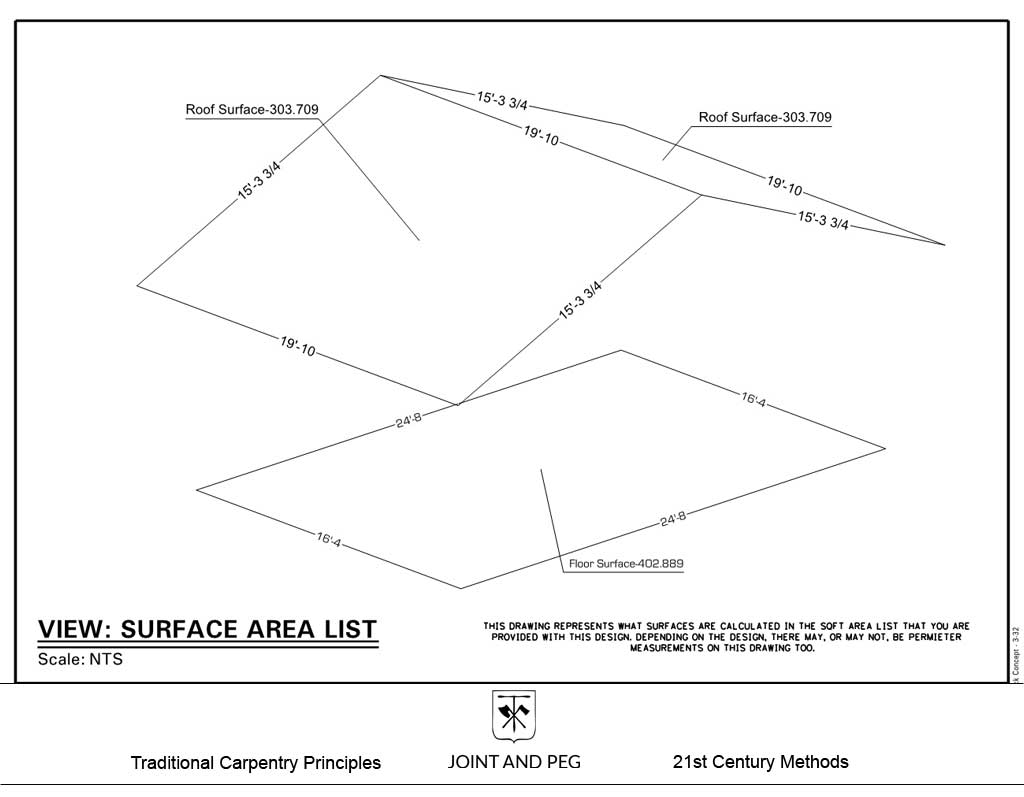

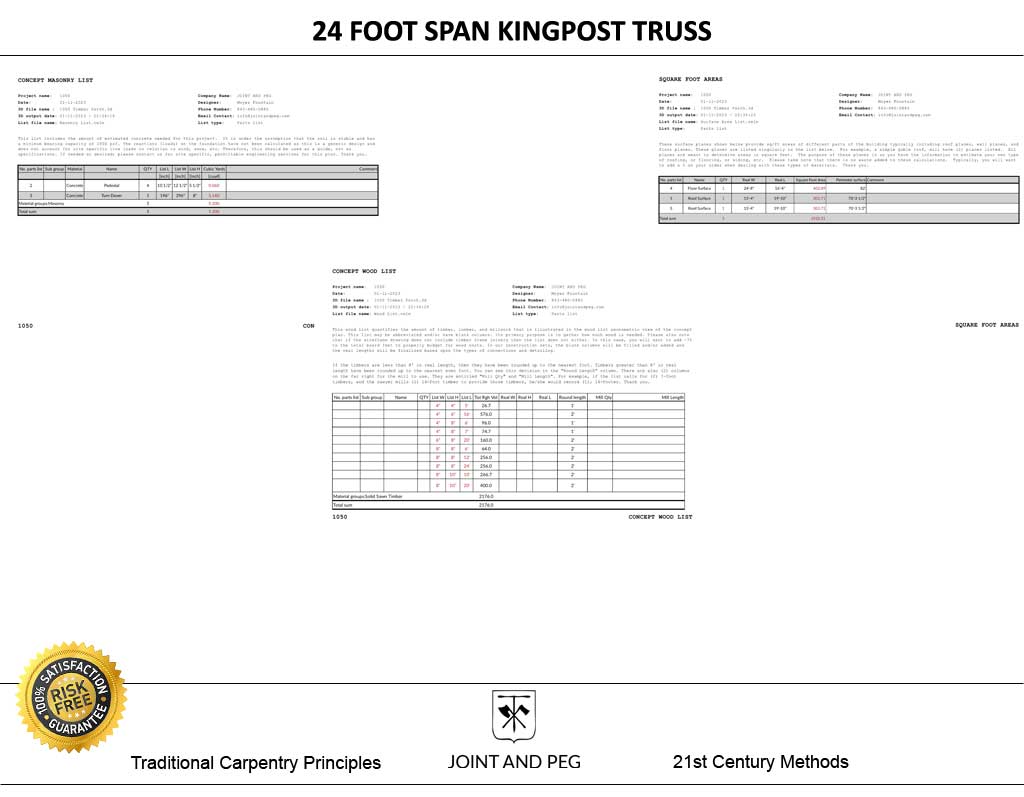

Included Bills of Materials	Wood List, Masonry List, Surface Area Takeoff
Options Offered	Timber Frame Plan, Engineered Plan, CNC Model, Ready to Assemble Timber Frame Kit
States with Kit Offered	AL, AR, GA, KY, MD, MO, NC, NY, PA, SC, TN, TX, VA, WV
Kit Timber Species Options	Douglas Fir, Southern Yellow Pine
Site Install Area Availability	Georgia, North Carolina, South Carolina
3d CNC Model Options	ACIS (.sat), Rhino (.3dm)
