Build the timber frame workshop you’ve wanted!
This 32×24 Timber Frame Workshop plan makes use of large bracing that has an old-world charm. This workshop would fit perfectly on the back of a large residential lot or as an accessory building on a working on hobby farm. It has a mow, or drive through, that has over 9’ clearance to allow all manners of trucks and small tractors to pull through.
Timber Frame and Board and Batten
Joint and Peg anticipates that this structure would work wonderfully on a farm in the Carolinas or other southeastern location. This design does not include an insulation area. You see the board and batten siding from the inside. For this reason, we have chosen to employ larger knee braces and small nail girts so that you can attach vertical board and batten siding.
Proper bracing for a strong timber frame.
Many other timber frame designs will have small braces and by the time you need to actually get the building to perform in its environment the plans will eventually require plywood. We don’t want that! No, this will stand without the panel product.
We have also included a footer and stem wall foundation that rises above grade with a P/T 2x mudsill under a 4x timber sill plate. This allows for an easier raising as the sills have mortises that catch the bottom of the posts when you stand the assemblies.
As this is a workshop or storage barn we wanted a clear span on the inside. To accomplish this, we designed a kingpost truss at the ridge apex. This timber frame workshop will age nicely and is designed to last for a couple of generations with care.
The workshop has (4) single hung windows that can be trimmed out to your desire and let just the right amount of light in. The roof is currently designed with a 2x tongue and groove deck with a metal roof atop.
We like this so much we might build this as our new shop.
- Foundation Stem Wall
- Timber Sill Plates
- Large Knee Braces
- Clear Span Footprint (no interior posts)
- 4x Nailers for framing out window openings and vertical siding support
- Kingpost truss parallel and under main ridge beam.
30 Day Guarantee and Conditions
Joint and Peg is committed to satisfying our customers with a quality product and service. We will provide refunds under the following conditions:
- Full refunds on downloaded plans within 30 days of purchase. Just write us an email or give us a call and we will issue your refund.
- Full refunds on shipped plans within 30 days of purchase minus a $10 processing fee + the shipping and handling fee.
- We request that you fill out a brief questionnaire to better understand your dissatisfaction and/or reason for the return. This is optional for you, but we would appreciate your reasons for the refund request.
- Engineered Construction Plans sales are final.
After 30 days, all plan sales are final. Please be sure that you have chosen the best plan to suit your needs and have received answers to your questions before making the purchase.
You can call us so we can assist with basic questions, and we are here Monday-Friday, 9-5EST to speak with you.
You can also email us at [email protected]
Important Information Regarding Purchased Stock Plans
Every state, county or municipality will have its own building and code requirements as environments differ from one region to the next. It is possible that your plan may need to be modified to comply with these local requirements and conditions. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow.
If you are building in any of these areas and depending on the size and purpose of the structure, it is likely that a licensed structural engineer will be needed to provide the necessary calculations and stamp.
All pre-drawn plans from Joint and Peg do not carry a stamp from a licensed architect or a licensed engineer. Please understand that we will not be held responsible for the performance and suitability of this design plan as we don’t know the criteria with where you plan to build, nor the material to be used, nor any additional structure to be implemented in the construction.
If this is a requirement from your local building department, or it proves to be the prudent thing to do, Joint and Peg can provide you state sealed engineered drawings for an additional fee. When it comes to the time to build, we highly recommend that you enlist our engineering service. Otherwise, the onus of this structure’s performance is solely with others, not Joint and Peg.
Single Use Terms
We authorize the use of our plans for one single project; conditioned on your obligation and agreement to comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. Multiplied use of our plans is prohibited. Thank you.
Plan Set Options
Concept – Suited for Homeowner and Builder - $
The concept plan provides an excellent instrument for gaining preliminary approval with HOA’s, neighborhood boards, and permit offices. The concept package allows not only for approval processes but also provides enough information for you to gather bids from builders or price out the work yourself. A full-page rendering is included to drum up support. You will need an architectural scale for these plans to gain measurements. Material lists and diagrams are provided along with the rendering and scaled drawings. The material lists include at a minimum:

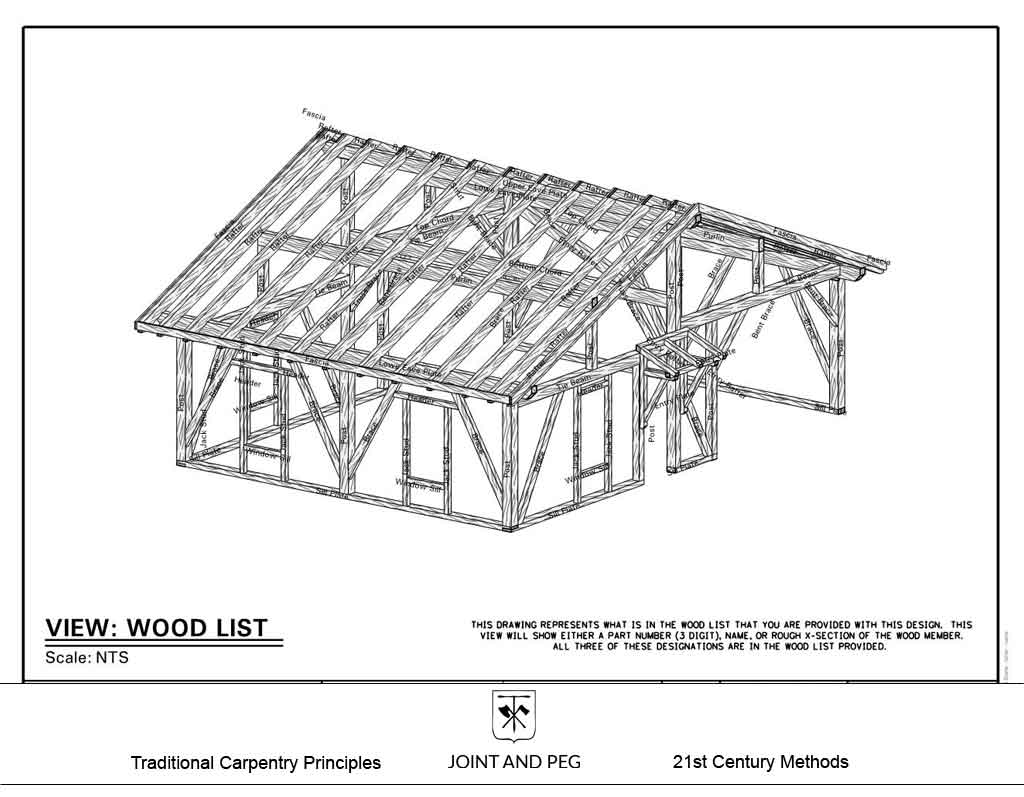

Wood List and Diagram – A preliminary tally of rough timber lengths, sizes, and lengths. Summed totals to allow for pricing.
