12×14 Garden House Plan

From $40.00

Perfect for the outdoor dining room in your garden. We envision suspending canvas curtains around the walls to create an intimate experience,

Secure Checkout

We stand behind our plans, products, and frames!

  • Designed and drafted by professional timber framers.
  • Gain approval, garners bids, construct.
  • Detailed, clear and thorough. Guaranteed or your money back.

An original timber frame design. This frame is perfect for the garden. This 12×12 Garden House is a very unique structure that will create a lasting impression on those that get to enjoy it in your garden. A comprehensive plan to build for yourself or provide to contractors for bids.

12×14 Garden House Plan includes (2) download pdf files provided immediately upon purchase with the following:

12x14_garden_house_plansgarden_house_material_lists

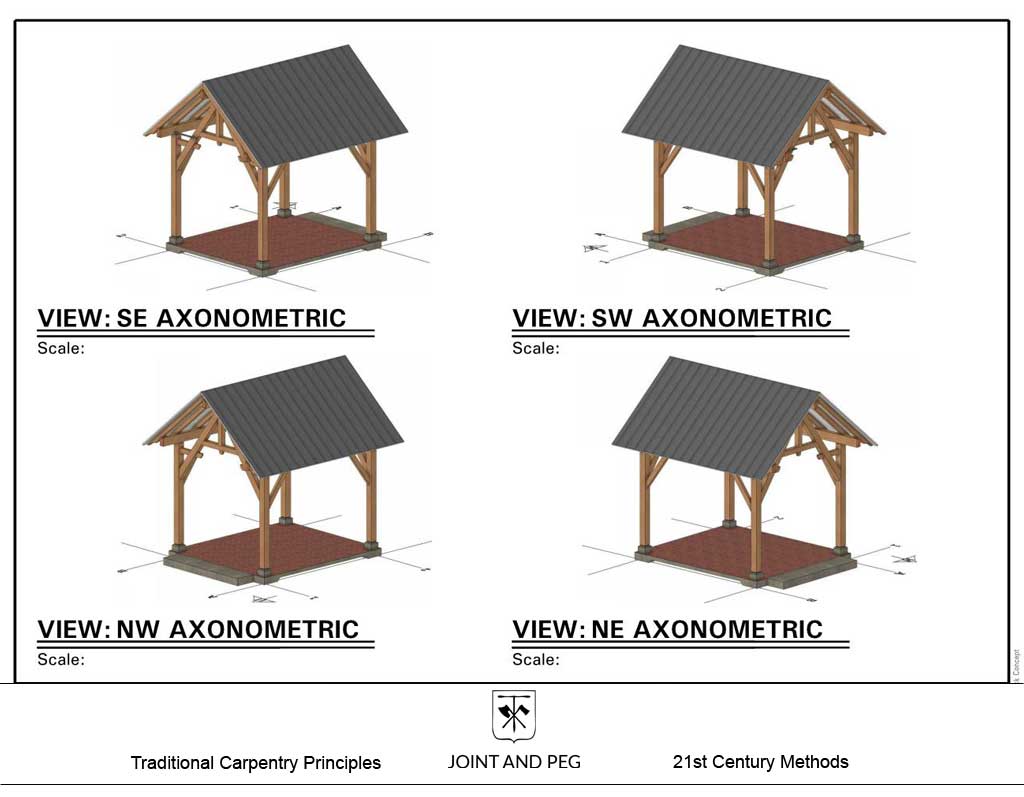

  • Colored Renderings
  • Scaled Architectural Elevations.
  • Scaled Plan View
  • Scaled Section View

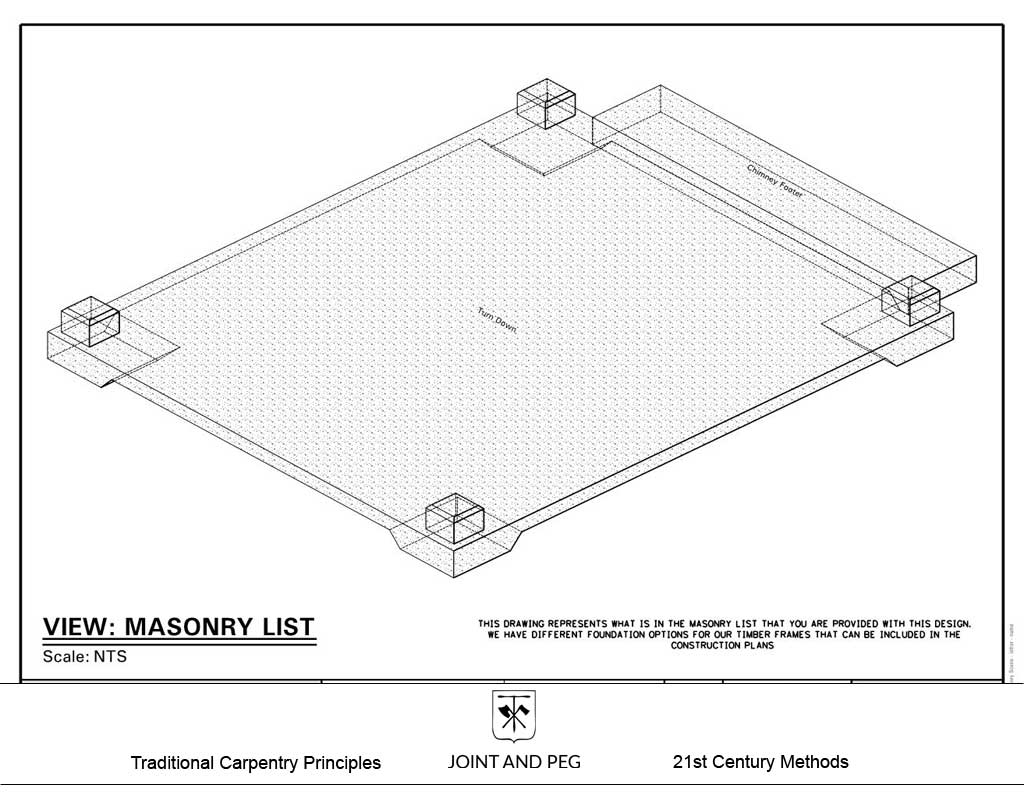

  • Garden House Material Diagrams
  • Garden House Material Lists

Available Add-Ons

timber_frame_stick_drawings

  • 12×14 Garden House Timber Frame Joinery Details
  • 12×14 Garden House Timber Frame Single Beam Drawings

30 Day Guarantee and Conditions

Joint and Peg is committed to satisfying our customers with a quality product and service. We will provide refunds under the following conditions:

  1. Full refunds on downloaded plans within 30 days of purchase.  Just write us an email or give us a call and we will issue your refund.
  2. Full refunds on shipped plans within 30 days of purchase minus a $10 processing fee + the shipping and handling fee.
  3. We request that you fill out a brief questionnaire to better understand your dissatisfaction and/or reason for the return.  This is optional for you, but we would appreciate your reasons for the refund request.
  4. Engineered Construction Plans sales are final.

After 30 days, all plan sales are final.  Please be sure that you have chosen the best plan to suit your needs and have received answers to your questions before making the purchase.

You can call us so we can assist with basic questions, and we are here Monday-Friday, 9-5EST to speak with you.

You can also email us at [email protected]

Important Information Regarding Purchased Stock Plans

Every state, county or municipality will have its own building and code requirements as environments differ from one region to the next. It is possible that your plan may need to be modified to comply with these local requirements and conditions. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow.

If you are building in any of these areas and depending on the size and purpose of the structure, it is likely that a licensed structural engineer will be needed to provide the necessary calculations and stamp.

All pre-drawn plans from Joint and Peg do not carry a stamp from a licensed architect or a licensed engineer. Please understand that we will not be held responsible for the performance and suitability of this design plan as we don’t know the criteria with where you plan to build, nor the material to be used, nor any additional structure to be implemented in the construction.

If this is a requirement from your local building department, or it proves to be the prudent thing to do, Joint and Peg can provide you state sealed engineered drawings for an additional fee. When it comes to the time to build, we highly recommend that you enlist our engineering service.  Otherwise, the onus of this structure’s performance is solely with others, not Joint and Peg.

Single Use Terms

We authorize the use of our plans for one single project; conditioned on your obligation and agreement to comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. Multiplied use of our plans is prohibited. Thank you.

Specifications

Base Frame Plan

Download File 1

Base Frame Plan: Letter Size Sheets (8 ½” x 11”) – Qty: 14

  • Notes
  • Plan Views
  • Elevations
  • Sections
  • Call Outs
  • Dimensions
  • Parts Numbers
  • Foundation Detail

Download File 2

Material Lists: Letter Size Sheets (8 ½” x 11”) – Qty: 7

  • Wood List
  • Concrete List
  • Screw List
  • Peg List
  • Connectors List
  • Square Foot Areas

Plan with Joinery Details

Download File 3

Joinery Detailing: Letter Size Sheets (8 ½” x 11”) – Qty: 7

  • Mortise and Tenon Joinery Details

Download File 4

Single Beam Drawings: Letter Size Sheets (8 1/2"x11") Qty: 17

  • Introduction
  • Single Beam Drawings
  • Dimensions

Typical Timber Sizes

  • 4x6 Timbers
  • 6x6 Timbers
  • 6x8 Timbers
  • 6x10 Timbers
  • 8x8 Timbers
