16×24 Timber Frame Pavilion Plan

From $17.00

A classic mid-size timber frame. There are many possible functions for this struture including a carport, pavilion, pool house, and arbor. Our 16×24 timber frame pavilion plan is the most thorough and delightful you will find.

Secure Checkout

We stand behind our plans, products, and frames!

  • Designed and drafted by professional timber framers.
  • Gain approval, garners bids, construct.
  • Detailed, clear and thorough. Guaranteed or your money back.

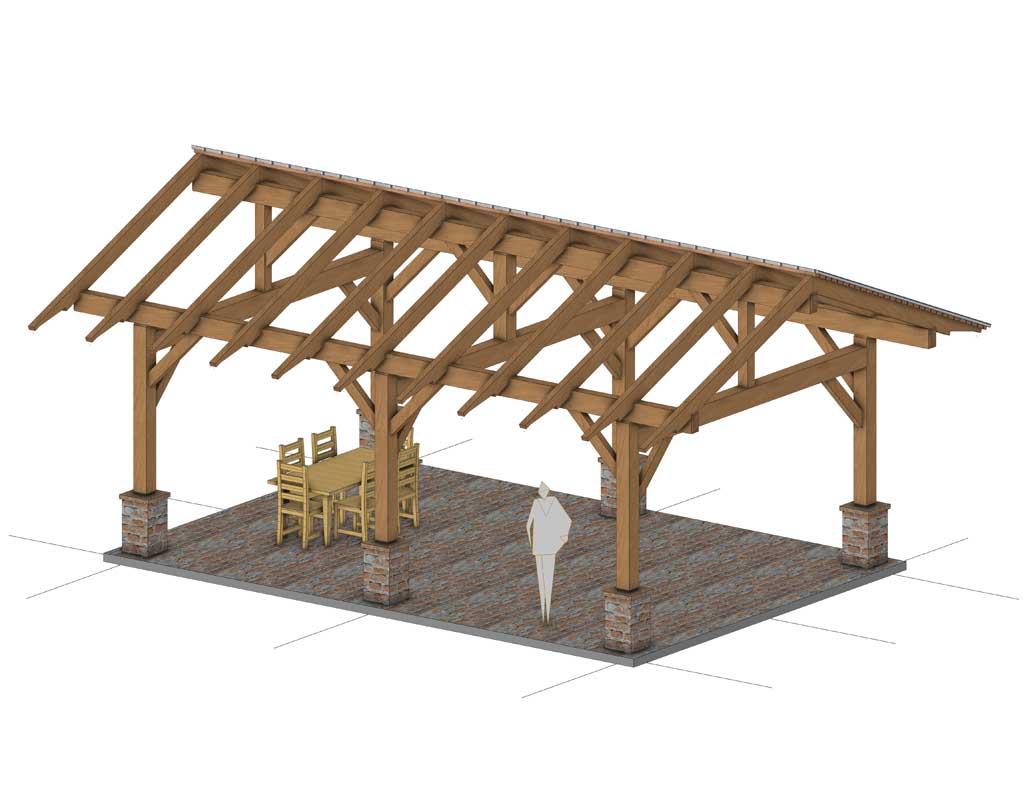

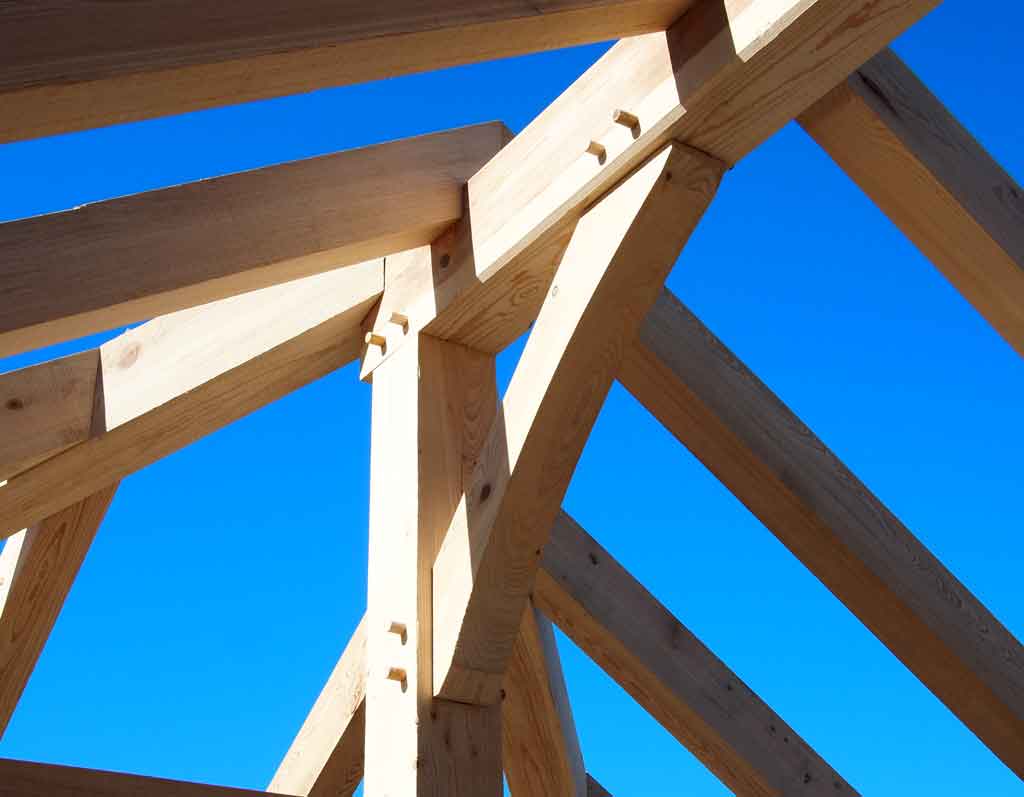

This 16×24 gable roof timber frame pavilion is a standout in that it uses smaller timbers while not sacrificing the stout look of a timber frame structure. The smaller timbers in the frame result in both money and labor savings.  Designed with authentic timber frame joinery.  Mortise and tenons with 1″ dia. pegs.

Its simple architecture makes it a less difficult timber frame to assemble and raise than others. Hang some curtains and watch them flow in the breeze while you entertain under this timber pavilion. The frame design is well suited for:

  • Single Bay Carport
  • Pool Pavilion
  • Open-Air Event Space
  • Outdoor Kitchen
  • Backyard Shade Structure.

This pavilion design is the real deal and a simple enough structure where the inclined DIY’er can accomplish this project and be proud of it for decades to come.

Contact us about this 16×24 timber frame pavilion kit.



30 Day Guarantee and Conditions

Joint and Peg is committed to satisfying our customers with a quality product and service. We will provide refunds under the following conditions:

  1. Full refunds on downloaded plans within 30 days of purchase.  Just write us an email or give us a call and we will issue your refund.
  2. Full refunds on shipped plans within 30 days of purchase minus a $10 processing fee + the shipping and handling fee.
  3. We request that you fill out a brief questionnaire to better understand your dissatisfaction and/or reason for the return.  This is optional for you, but we would appreciate your reasons for the refund request.
  4. Engineered Construction Plans sales are final.

After 30 days, all plan sales are final.  Please be sure that you have chosen the best plan to suit your needs and have received answers to your questions before making the purchase.

You can call us so we can assist with basic questions, and we are here Monday-Friday, 9-5EST to speak with you.

You can also email us at [email protected]

Important Information Regarding Purchased Stock Plans

Every state, county or municipality will have its own building and code requirements as environments differ from one region to the next. It is possible that your plan may need to be modified to comply with these local requirements and conditions. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow.

If you are building in any of these areas and depending on the size and purpose of the structure, it is likely that a licensed structural engineer will be needed to provide the necessary calculations and stamp.

All pre-drawn plans from Joint and Peg do not carry a stamp from a licensed architect or a licensed engineer. Please understand that we will not be held responsible for the performance and suitability of this design plan as we don’t know the criteria with where you plan to build, nor the material to be used, nor any additional structure to be implemented in the construction.

If this is a requirement from your local building department, or it proves to be the prudent thing to do, Joint and Peg can provide you state sealed engineered drawings for an additional fee. When it comes to the time to build, we highly recommend that you enlist our engineering service.  Otherwise, the onus of this structure’s performance is solely with others, not Joint and Peg.

Single Use Terms

We authorize the use of our plans for one single project; conditioned on your obligation and agreement to comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. Multiplied use of our plans is prohibited. Thank you.

F.A.Q.

Can I submit this plan to a builder?

Yes!  There is everything in our plan to receive pricing from builders to construct this plan.  Further, they will be happy to have most of the takeoff completed and listed as part of the plans you receive.

Can I use this for approval?

Yes. We supply drawings that allow you to submit to your review board to determine whether they will allow it.  Every permit office is different with what they require, but at least you will start off on the right step by using these plans.

Can I build this timber frame myself?

That depends upon your carpentry skill level and tool kit. If you are interested in our shop drawings with mortise and tenon joinery you will need to at least have some good woodworking skills and/or mechanical abilities. If you have those and these plans at your side, you are prepared to accomplish the project!  Its up to you at that point to get started!

What if I don’t have the tools for mortise and tenon joinery?

In that case we recommend the more affordable core plan option.  The core plan is everything except the details of the timber frame joinery.  You choose what hardware you would want to use.  Have a look, some of the options include a “post and beam” plan offering.

Is this plan engineered?

No, this plan is not engineered. Engineering requires knowing where the construction takes place and whether it is in snow country, windy areas, or seismic zones.  When you plan to build, we recommend contacting us and we can provide the service to you for a competitive fee.

That’s great but can Joint and Peg build it for me?

If we have the option for a kit listed above then Yes!  Please check the description to see if we offer it in your state.  We can also arrange raising the frame for you.  You will need to contact us to get a quote for the whole package.

Specification

Concept Plan

Download File 1

Concept Plan: Letter Size Sheets (8.5″ x 11″) – Qty: 6

  • Axo Views
  • Full Page Rendering
  • Scaled Plan Views (no Dimensions)
  • Scaled Eelevations (no Dimensions)
  • Wood Diagram
  • Concrete Diagram

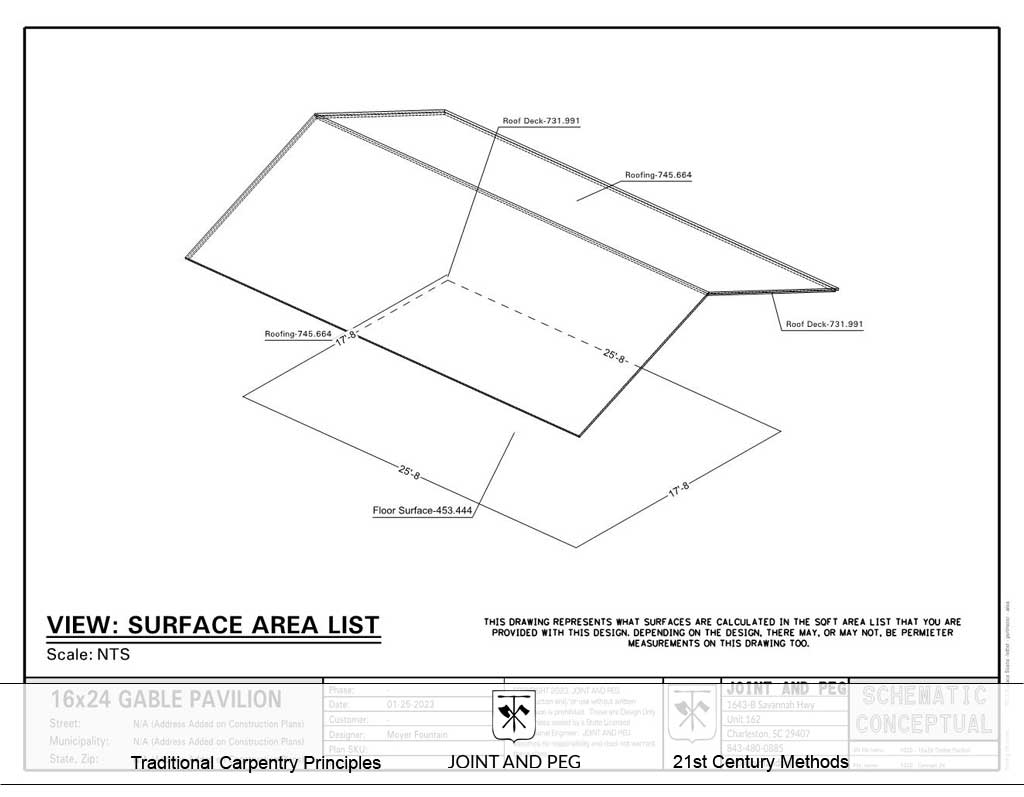

  • Sq/Ft Diagram

Download File 2

Concept Material Lists: Letter Size Sheets (8.5″ x 11″) – Qty: 3

  • Wood List
  • Masonry List
  • Sq/FT List

Base Frame Plan

Download File 1

Base Frame Plan: Ledger Size Sheets (11” x17”) – Qty: 11

  • Notes
  • Plan Views
  • Elevations
  • Sections
  • Call Outs
  • Dimensions
  • Parts Numbers
  • Foundation Detail

Download File 2

Material Lists: Letter Size Sheets (8 ½” x11”) – Qty: 6

  • Wood List
  • Concrete List
  • Screw List
  • Peg List
  • Connectors List
  • Square Foot Areas

Plan with Joinery Details

Download File 3

Joinery Detailing: Ledger Size Sheets (11” x 17”) – Qty: 3

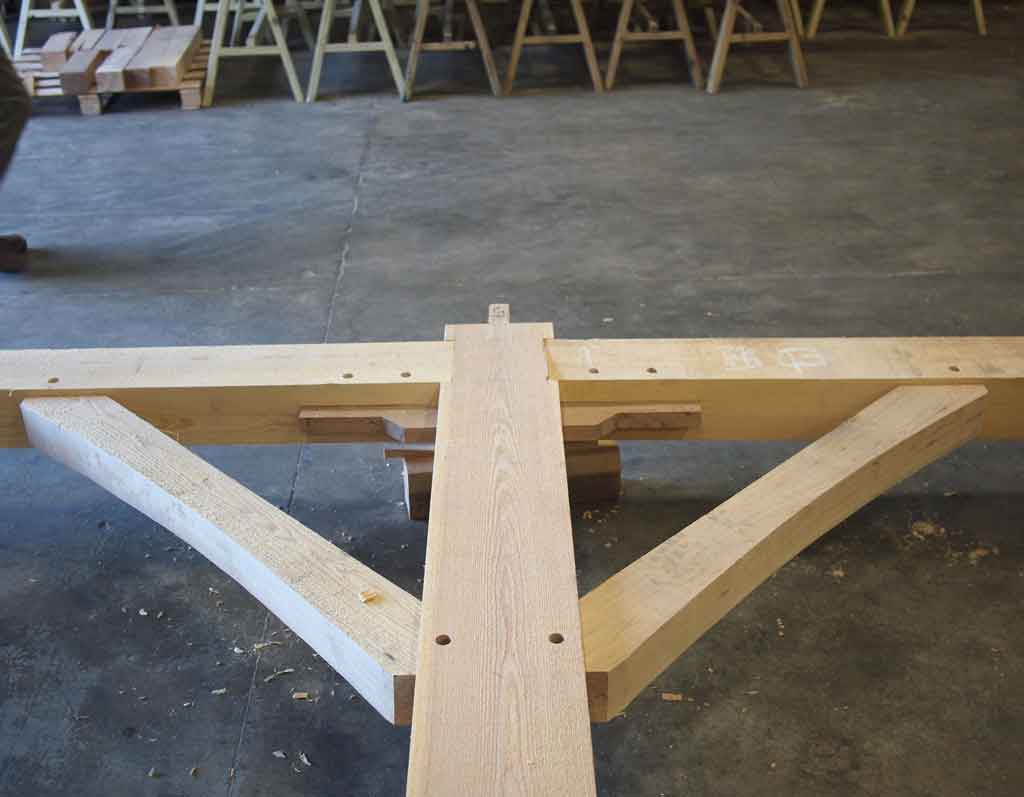

  • Mortise and Tenon Joinery Details

Download File 4

Single Beam Drawings: Letter Size Sheets (8 1/2″x11″) Qty:24

  • Introduction
  • Single Beam Drawings
  • Dimensions

Typical Timber Sizes

  • 4×6 Braces
  • 4×8 Common Rafters
  • 6×6 King Post
  • 6×10 Plates and Ridges
  • 8×8 Posts
  • 8×10 Tie Beams
